The Hunter MP820360 is a full-circle rotating nozzle from the MP800 series, radius 4.6–7.3 m, sector 360°
Hunter MP820360 — is the latest solution in the popular Hunter MP800 line, providing full-circle irrigation at 360° with an intensity of 20 mm/h. Thanks to the increased radius of up to 7.3 m, this nozzle opens up new possibilities for designing systems on large objects and modernizing existing systems. The model is distinguished by its high uniformity of water distribution and resistance to wind, guaranteeing a healthy look for your area.
-
Delivery and Payment
-
Warranty
-
Return and Exchange
Full Product Description
Hunter MP820360: Power and uniformity of full-circle irrigation
Nozzle Hunter MP820360is specially designed for areas where continuous circular irrigation is required. It combines the benefits of slow rotation and multi-stream technology, allowing water to be effectively absorbed into the soil without forming puddles and erosion.
Key benefits of the nozzle:
- High irrigation intensity:Unlike standard MP Rotator models (10 mm/h), the MP800 series provides an intensity of 20 mm/h. This is ideal for soils of medium density, gentle slopes, and small areas where the overall system operating time needs to be reduced.
- Resistance to external factors:The slow rotation of the nozzle forms powerful streams that are resistant to wind, preventing the formation of water mist and ensuring coverage of the entire radius with high uniformity.
- Maximum reliability:The unique double-actingfeature protects the nozzle from debris and sand entering from the outside. The presence of only one moving part ensures stable operation even in the most challenging operating conditions.
- Ease of identification:Thanks to color coding and a removable mesh filter, the process of maintenance and replacement of nozzles becomes extremely convenient.
Where is it best to use the MP820-360?
These nozzles are widely used in automatic irrigation of park areas, large lawns, low-growing shrubs, and vegetable crops. The use of full-circle models allows for significant savings on components on large objects.
Installation and setup instructions:
- Installation:Unscrew the flushing nozzle from the sprinkler shaft and replace it with the Hunter MP820360.
- Radius adjustment:All MP Rotator models allow the radius to be reduced by up to 25%while maintaining irrigation accuracy. Turn the central screw clockwise to reduce the radius or counterclockwise to increase it. Four full turns provide the maximum adjustment range.
- Irrigation sector:Note that this model has a FIXED 360° sector, so adjusting the irrigation angle is not provided for it.

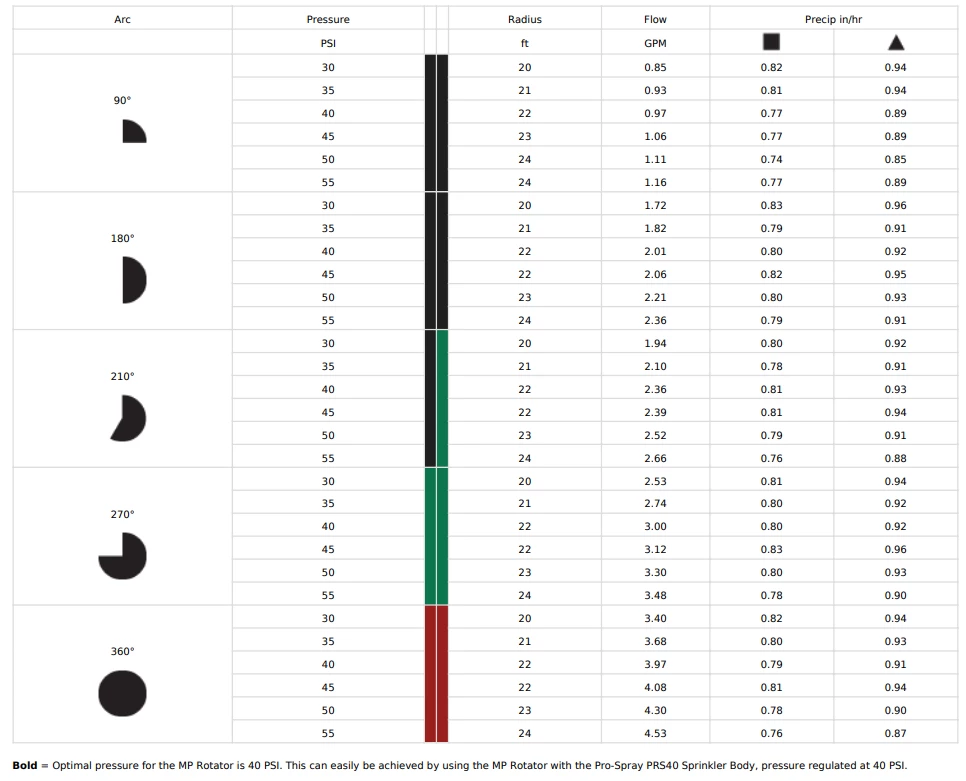

Technical specifications:
Parameter
Value
Type
Rotary nozzle
Irrigation radius
4.6 – 7.3 m
Irrigation sector
360° (fixed)
Irrigation intensity
20 mm/h
Recommended pressure
2.1 – 3.8 bar
Features
Double-acting, removable filter
Tip from Agras.ua:To achieve the ideal result and maximum water savings on steep slopes or very dense soils, we recommend choosing standard MP Rotator models with an intensity of 10 mm/h. Use the MP820360 where the soil's water absorption rate allows for more intense irrigation
MP-820 Range: 1.8-7.3 m Adjustable sector and full rotation
Gray with black: 90–210°
Gray with green: 210–270°
Gray with red: 360 °
