Hunter MP820270 nozzle — MP800 series rotary nozzle, radius 4.6–7.3 m, sector 210°–270°
Hunter MP820270 is a highly efficient multi-stream nozzle that provides ideal uniformity of irrigation at medium distances (up to 7.3 m). Thanks to the special 210°–270° adjustment sector, it is ideal for irrigating corner areas of large areas or non-standard landscape curves. The MP800 series features an irrigation intensity of 20 mm/hour, allowing faster soil moistening compared to standard rotators, while maintaining all the advantages of wind resistance and water savings.
-
Delivery and Payment
-
Warranty
-
Return and Exchange
Full Product Description
Hunter MP820270: Maximum efficiency and precision irrigation
NozzleHunter MP820270uses patented multi-trajectory technology, which replaces standard water spraying with thin, rotating streams. This allows water to be supplied at a rate that matches the absorption rate of most soil types, virtually eliminating runoff and puddles.
Key benefits of MP Rotator technology:
- Even coverage:Unlike traditional sprays, the MP Rotator provides a stable precipitation rate at any sector or radius setting. This prevents dry spots on the lawn.
- Water savings of up to 30%:Thanks to the low precipitation rate and lack of misting, the system consumes significantly less water than conventional sprayers.
- Reliability and durability:Thedouble-pop featureprotects the nozzle from clogging, as the nozzle is hidden in the body when irrigation is turned off. The built-in removable filter further protects the internal mechanism from contamination.
- Wind resistance:Low-trajectory streams are resistant to gusts of wind, ensuring that water is delivered precisely to the target even in challenging weather conditions.
Flexibility of adjustment and installation:
The nozzle is easily installed on any standard static sprinkler body (e.g., Hunter Pro-Spray). This makes it an ideal choice for both new facilities and modernization of old low-pressure systems.
Setup instructions:
- Irrigation sector: The model has a fixed left boundary. To adjust the sector from 210° to 270°turn the adjustment ring clockwise (increase) or counterclockwise (decrease).
- Irrigation radius: You can reduce the radius by up to 25%. To do this, turn the screw in the center of the nozzle clockwise. Four full turns allow you to achieve maximum reduction.
- Optimal pressure: The best results are achieved at a pressure of 2.8 bar. To stabilize the pressure, it is recommended to use Hunter PRS40 bodies.

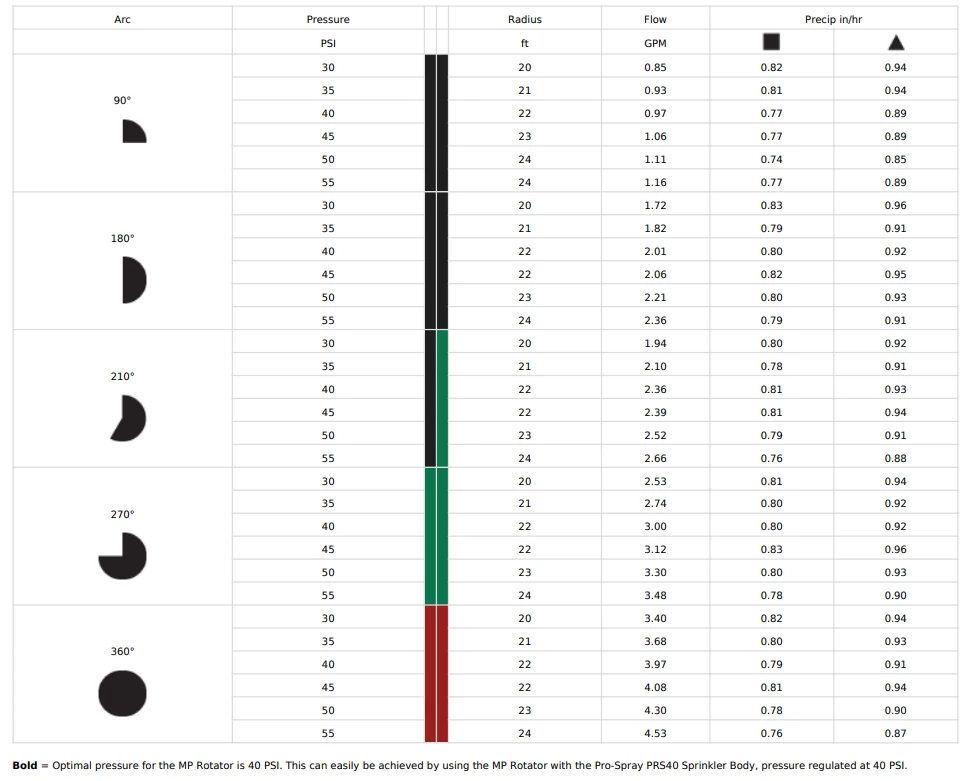

Technical characteristics:
Parameter
Value
Range
4.6 – 7.3 m
Irrigation sector
210° – 270° (adjustable)
Precipitation rate
20 mm/h (MP800 series)
Recommended pressure
2.8 bar (280 kPa)
Features
Color coding, double-pop
Tip from Agras.ua: The MP820270 model is a professional solution for areas where it is necessary to quickly and efficiently irrigate a large angular sector. Thanks to the precipitation rate of 20 mm/h, it allows reducing the total operating time of the irrigation system compared to standard rotators
